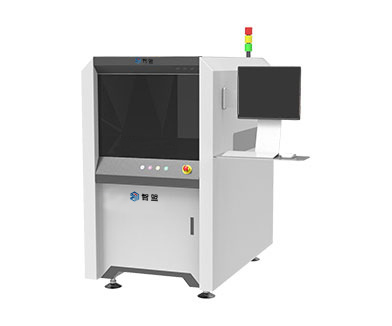

| 型号 model | DR77H |
| 结构 structure |
落地柜式（大理石框架+移动龙门） floor type, in-line(marble frame + mobile gantry) |
| 轴数 axis No. | 3轴3axis |
|
点胶区域（W×D） dispensing area(W*D) |
350×480mm |
|
运动范围X轴/Y轴/Z轴(mm) motion range X/Y/Z(mm) |
500/600/100 |
|
大速度X轴/Y轴/Z轴(mm/s) max speed X/Y/Z(mm/s) |
800/800/200 |
|
重复定位精度 RP accuracy |
±0.01mm |
|
大加速度X轴/Y轴/Z轴(g) max acceleration speed X/Y/Z(g) |
1.2/1.2/0.5 |
|
传动方式 transmission type |
直线电机+光栅尺 linear motor + grating |
|
Z轴负载(kg) Z axis load(kg) |
5 |
|
输送带负载(kg) conveyer belt load(kg) |
3 |
|
大基板厚度(mm) max substrate width(mm) |
10 |
|
输送轨道高度调节范围(mm) conveyer rail height range(mm) |
890~965 |
|
输送轨道 conveyer rail |
防静电耐高温6mm平皮带，标准边缘间隙3mm anti-static and high temperature 6mm flat belt, the standard edge clearance 3mm |
|
轨道调宽 rail width’s range |
55mm~515mm |
| 输送速度 conveyer speed | 300mm/s |
| 编程方式 programming type |
基于PC机开发 developed from PC |
|
相机像素(万像素) camera pixel(M) |
130-2000万像素 1.3M-20M pixel |
| 重量（kg）weight(kg) | 800 |
|
外形尺寸（宽×深×高）(mm) dimension (L*W*H)(mm) |
770×1250×1900 |
| 输入电压 input voltage | 220V AC 50Hz |
|
工作环境 work environment |
温度0-40℃ 湿度20-90%（不结露） temperature 0-40℃, humidity 20-90%(no condensation) |
